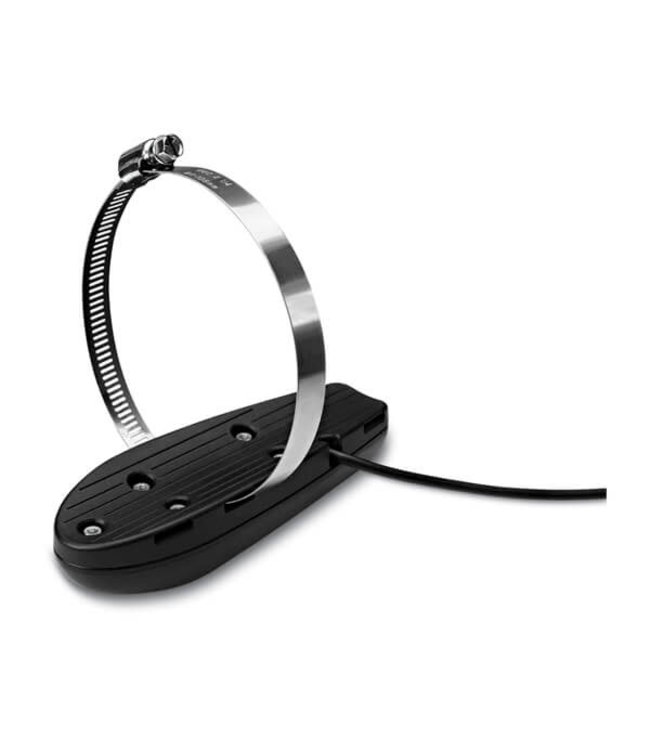

Perfect for the shallow water fisherman who want traditional and CHIRP ClearV scanning sonar, this transom or trolling motor mounted transducer consistently displays fish arches as well as clear pictures of objects, structure and fish that pass below your boat.
The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (ClearV ); an operating frequency of 77/200 kHz (traditional) and 455 kHz (ClearV ); and a 0 to 70 transom angle.
Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.
The 20 ft transducer cable with built-in fast response temperature sensor has a power rating of 500 W; a depth of 1,900 ft (traditional) and 750 ft (ClearV ); an operating frequency of 77/200 kHz (traditional) and 455 kHz (ClearV ); and a 0 to 70 transom angle.
Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Product Details
| TRANSDUCER CABLE LENGTH | 20 ft. |
|---|---|
| TRANSDUCER FREQUENCY | Traditional 77/200; ClearV CHIRP 455 kHz (435-475 kHz) & 800kHz (800-840 kHz) |
| TRANSDUCER POWER | Traditional 500 W; ClearV 500 W |
| TRANSDUCER BEAMWIDTH | Traditional: 45 /15 ClearV : 2.5 x53 @ 455 kHz and 1.6 x29 @ 800 kHz |
| TRANSDUCER MAXIMUM DEPTH | Traditional: 1,900 ft.; ClearV : 750 ft. |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| TRANSDUCER NUMBER OF PINS | 4-pin |
| TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES | 0 -70 degree transom |
