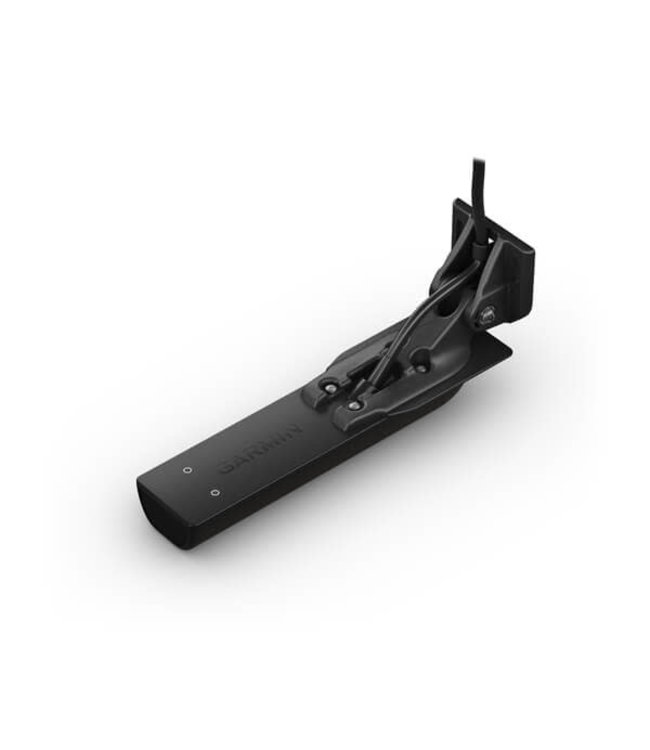

This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearV and SideV scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.
Product Details
| TRANSDUCER CABLE LENGTH | 25 ft |
|---|---|
| TRANSDUCER FREQUENCY | Traditional High-wide CHIRP (150-240 kHz); ClearV /SideV 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
| TRANSDUCER POWER | Traditional 350 W; ClearV /SideV 500 W |
| TRANSDUCER BEAMWIDTH | Traditional CHIRP: 24-16; ClearV 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideV 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz |
| TRANSDUCER MAXIMUM DEPTH | Traditional: 800 ft freshwater; ClearV : 400 ft; SideV : 500 ft |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth and temperature |
| TRANSDUCER NUMBER OF PINS | 12 |
| TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES | 0 -70 degree transom (GT56UHD-TM) |
Dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm
