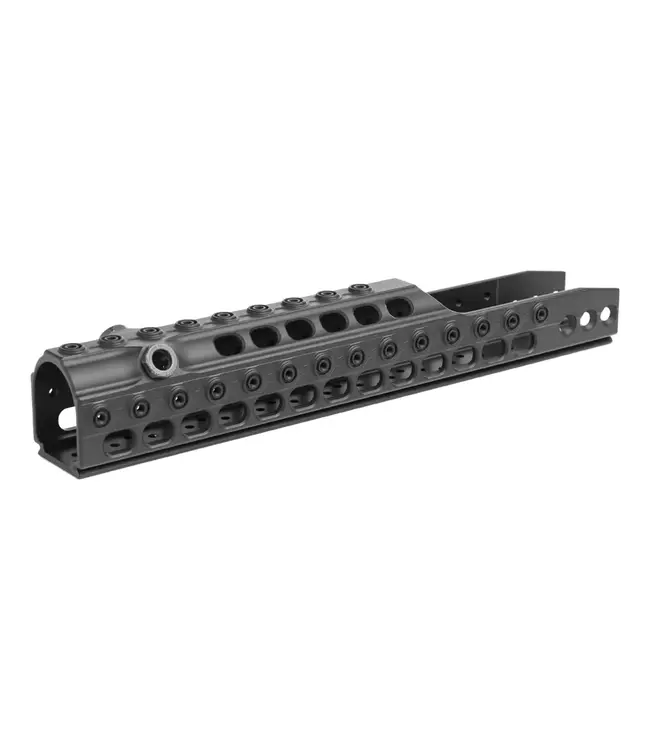

13" Forend for use with suppressors and barrel profiles up to Heavy Varmint profile. Features Spuhr Interfaces along the top of the forend for use with NV devices and illuminators, etc.

Specifications:

• Length: 916 mm/36.1” (626 mm/24.7” folded)
• LOP: 330 mm/13" (minimum)
• Width: 48.5 mm/1.9”
• Height: 180 mm/7.1”
• Weight: TBD
• Forend: 329 mm/13.0”
• Color: Black

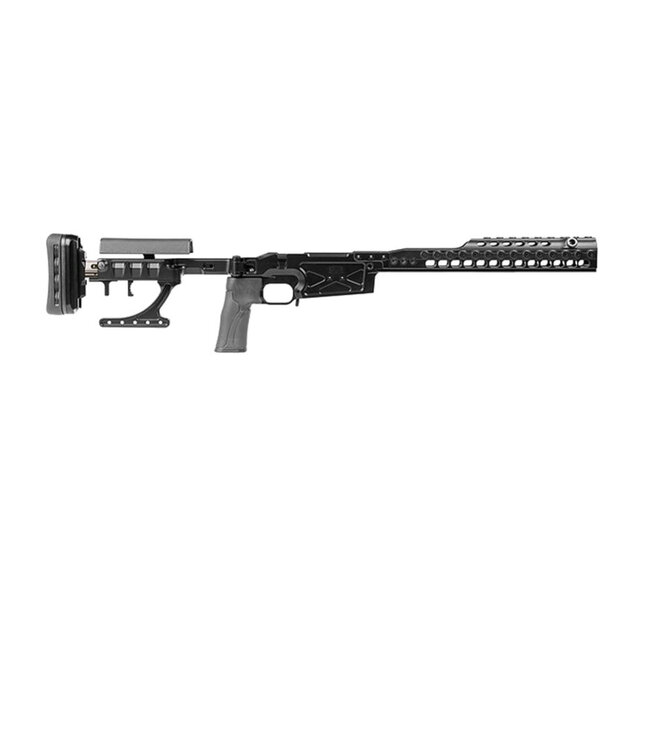

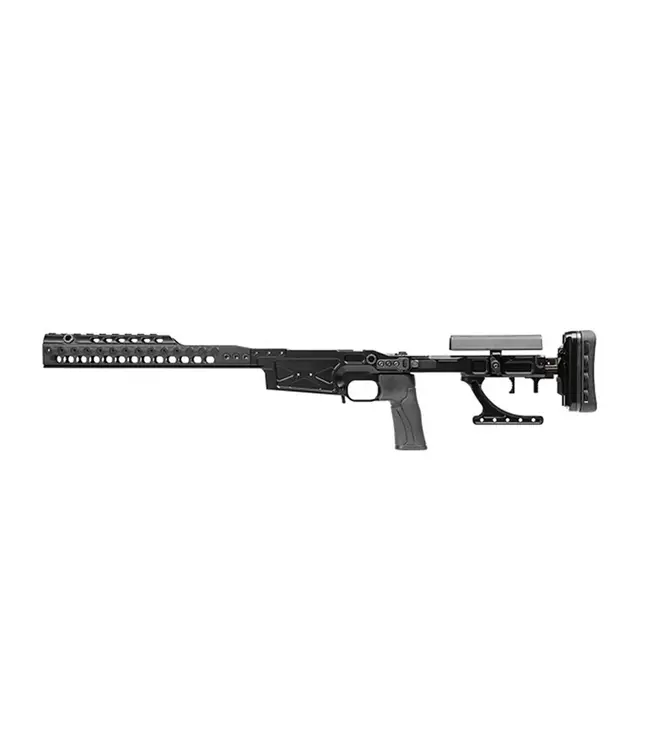

The Spuhr Ideal Chassis System (SICS) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS features:

• Aircraft grade aluminum alloy construction
• Folding stock assembly with adjustment for solid lockup
• Quick-adjustable length-of-pull (50 mm/1.97” travel) and recoil pad height (32 mm/1.25”) – toolless and without play
• Height and length-adjustable cheek piece
• Length-adjustable proprietary pistol grip (8 mm/0.32” travel, AR-compatible)
• 13” Spuhr Interface forend with integrated ARCA Swiss rail and QD sling cups
• AICS pattern magwell
• Built-in barricade stop

Note: Actions with 60-degree bolt throw may not allow stock to be folded over closed bolt. Due to variances in dimensions, some recoil lugs may require fitting.
Max barrel diameter at the shank: 32 mm/1.25".
Clearance between front of action and handguard is approximately 130 mm/5.11" and may require the use of a 38 mm/1.5" high mount.
