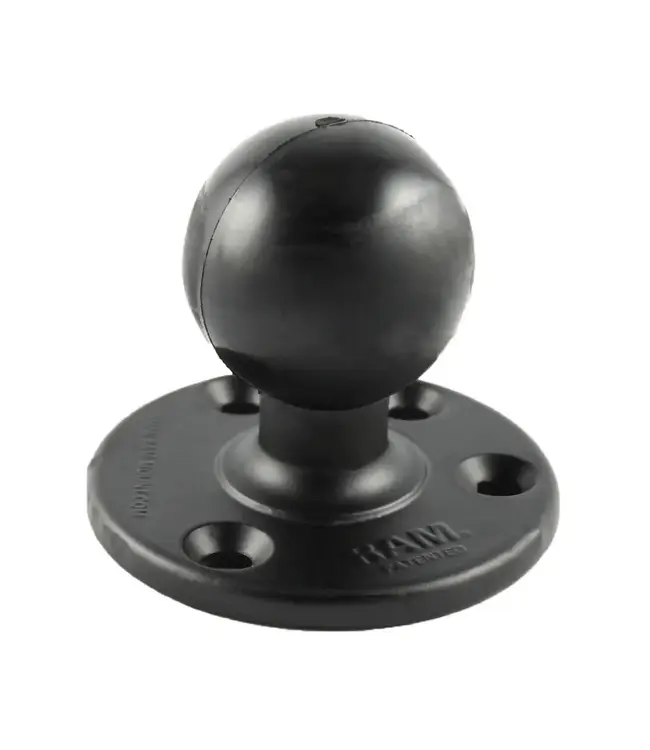

The RAM Large Round Plate with Ball – D Size (RAM-D-202U) features a 3.68" diameter round plate with an integrated 2.25" rubber ball. Compatible with all D size RAM components, this base can be attached to a device with a matching hole pattern or drilled down to a flat surface for permanent installation. The pre-drilled hole pattern includes two holes at 180 degrees and three holes at 120 degrees, providing multiple mounting options.
Features:
- 3.68" round plate for drill-down mounting
- Included D size 2.25" RAM rubber ball allows for connection to any D size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications:

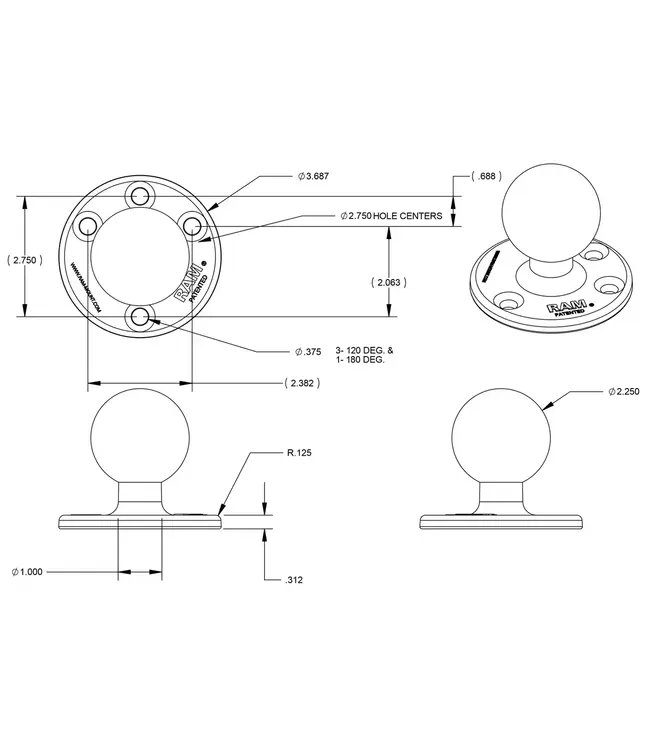

- Hole pattern: See Drawing
- Plate size: 3.68" Diameter
- Ball size: D Size (2.25")
- Weight capacity:
- Standard Use: 6 lbs
- Heavy-Duty Use: 5 lbs
- Materials: Marine-grade aluminum
- Packaging type: Poly Bag
- Weight: 0.71 lb
