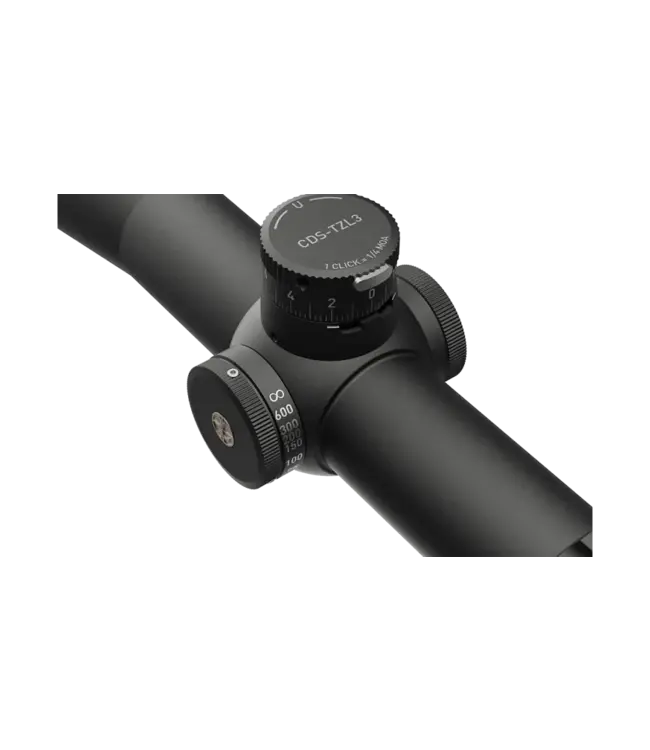

The VX-5HD 4-20x52mm may just be that sweet spot you've been looking for in magnification ranges. Low enough magnification to get the job done in densely wooded areas and enough horsepower at the top-end to make accurate shots at long-range distances. Plus, the CDS-TZL3 elevation adjustment takes target-style adjustments to a new level with a push-button locking feature and an easy-to-read revolution indicator.
The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.
As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features:
Specifications:
| BDC Dial Included | No |
|---|---|
| Custom BDC Dial Compatible | Yes |
| Daylight Bright Illumination | No |
| Elevation Adjustment Type | CDS-TZL3 |
| Electronic Reticle Level | No |
| Illuminated Reticle | No |
| Light Management System | Professional-Grade Optical System |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | Yes |
| Reticle | TMOA |
| Rezero Type | Set Screw |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Windage Adjustment Type | Pop-Up Rezero |
| Weight (oz) | 23.8 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 75 |
| Elevation Adjustment Range (MIL) | 22 |
| Elevation Adjustment Range (cm @ 100m) | 218 |
| Elevation Adjustment Per Revolution | 20 MOA |
| Elevation Dial Travel Limit | 60MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 75 |
| Windage Adjustment Range (MIL) | 22 |
| Windage Adjustment Range (cm @ 100m) | 218 |
| Windage Adjustment Per Revolution | 20 MOA |
| Magnification Max | 20 |
| Magnification Min | 4 |
| Objective Lens Diameter (mm) | 52 |
| Linear FOV Low Mag (ft@100yds) | 28.1 |
| Linear FOV High Mag (ft@100yds) | 5.8 |
| Angular FOV Low Mag (Degrees) | 5.4 |
| Angular FOV High Mag (Degrees) | 1.1 |
| Eye Relief Low Mag (in) | 3.7 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 50 |
Dimensions:
| Â Total Length (in) | 14.7 |
|---|---|
| Total Mounting Space (in) | 6.2 |
| Front Mounting Space (in) | 2.1 |
| Rear Mounting Space (in) | 2.6 |
| Eyepiece Length (in) | 3.3 |
| Objective Length (in) | 5.1 |
| Objective Diameter (in) | 2.4 |
| Eyepiece Diameter (in) | 1.8 |
| Maintube Diameter (mm/in) | 34 mm |
