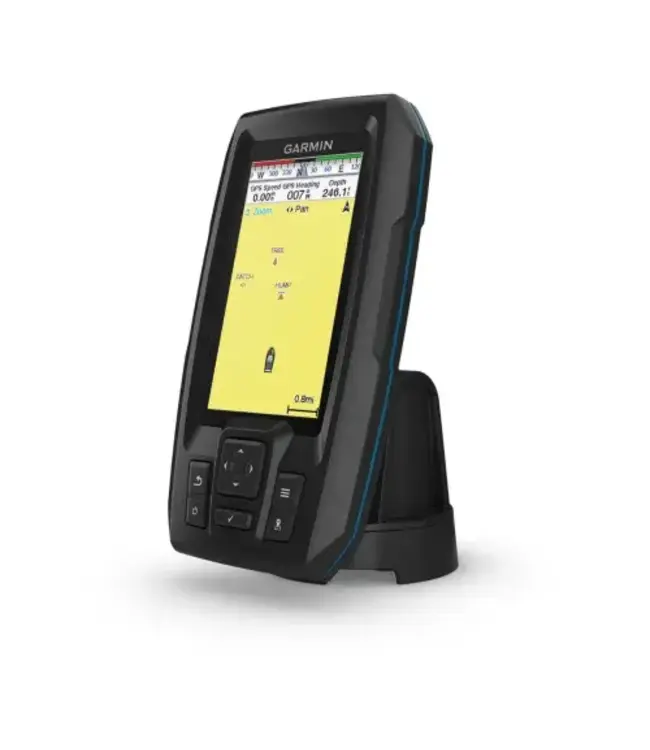

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 4cv fishfinder with transducer.

Features:

• CLEAR, COLORFUL SONAR
  Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 4” fishfinder.
• BUILT-IN SONAR
  Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.
• WAYPOINT MARKING
  To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
• HIGH-SENSITIVITY GPS
  Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
• QUICKDRAW CONTOURS
  Nobody knows the waters you fish better than you. With the STRIKER Vivid 4cv fishfinder, you can store up to 2 million acres of maps with 1’ contours1.
• INCLUDED HARDWARE
  The STRIKER Vivid 4cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Specifications:

General

• Dimension: 3.9'' x 6.9'' x 1.8'' (9.8 x 17.4 x 4.5 cm)
• Weight: 0.7 lbs (320 g)
• Water rating: IPX7
• Display Type: QSVGA
• Display Size: 2.1" x 3.7" (5.4 x 9.5 cm); 4.3" diag, (10.9 cm)
• Display resolution: 272 X 480 pixels
• Mounting Options: flush, tilt/swivel
• Input: Keyed

Maps & Memory

• Waypoints/favorites/locations: 5000
• Track points: 50,000
• Tracks: 50
• Navigation Routes: 100

Sensors

• GPS
• Has built-in receiver
• Supports WAAS

Optional Map Support

• Garmin Quickdraw Contours

Electrical Features:

• Power Input: 12 to 20 Vdc
• Typical current draw: 0.40 A
• Max current draw: 1.5 A
• Power Consumption: 4.8

Sonar Features:

• Displays sonar
• Traditional sonar (dual frequency/beam): Built-in
• ClearVü
• Frequency:
  • Traditional: 50/77/200 kHz
  • CHIRP (mid and high)
  • ClearVü 260/455/800 kHz
• Transmit power: 300 W (RMS)
• Bottom Lock (shows return from the bottom up)
• Water Temperature Log

Connections:

• 4-pin transducer ports: 1

Fishfinder Features:

• Split-screen zoom
• Fish Symbol ID (helps identify fish targets)
• Autogain technology (minimizes clutter; maximizes targets)
• Adjustable depth line (measures depth of underwater objects)
• A-scope (real time display of fish passing through transducer beam)
• Water temperature sensor included
• Depth range shading
