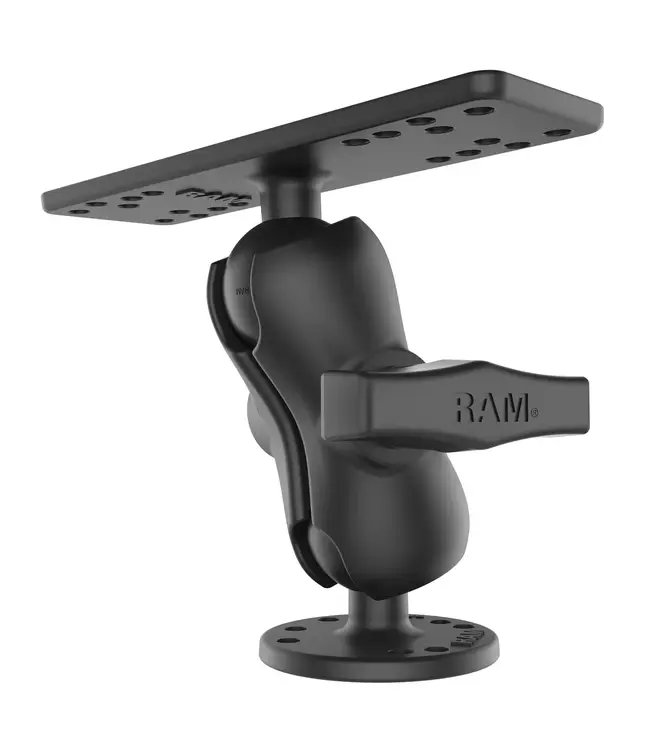

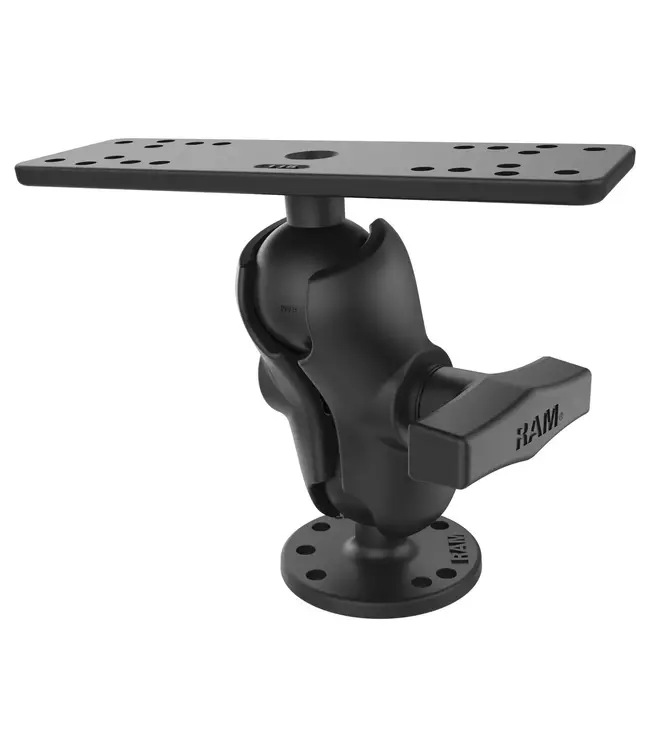

The RAM Universal Marine Electronic Mount (RAM-111U-B) is a rugged, fully adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this system includes a 3.56"" short C size double socket arm, a 2.5" diameter round base, and a 6.25"" x 2"" rectangular adapter plate for secure device mounting. The rectangular adapter features multiple pre-drilled hole patterns, making it compatible with a wide range of marine electronics and mounting configurations, including fish finders, marine GPS units, CB and ham radios, gimbal brackets, and more.
Features:
- Complete flat surface, drill-down mounting solution with an overall height of 5.225"

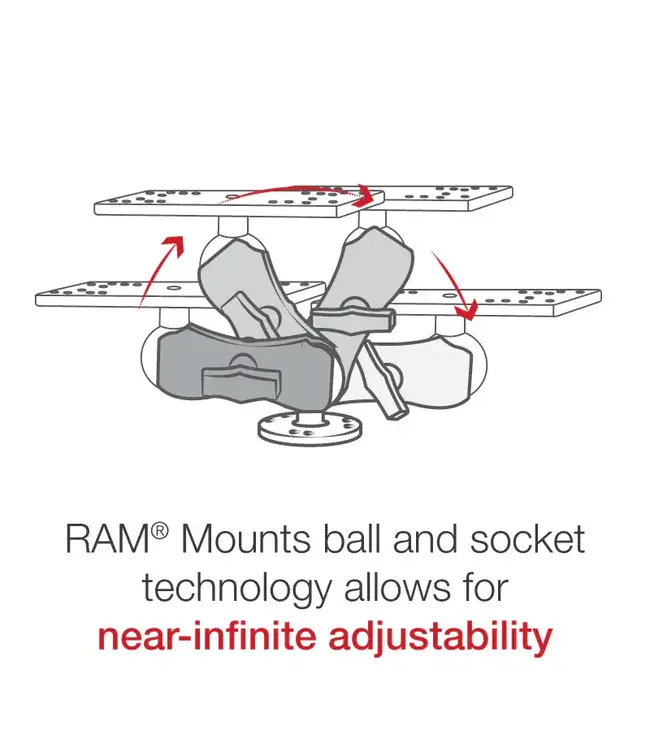

- RAM Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
Specifications:
- Overall Height: 5.225"
- Socket to socket length: 2.5"
- Hole pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
- Plate size:
- Rectangular Plate: 6.25" x 2"
- Round Plate: 2.5" Diameter
- Ball size: C Size (1.5")
- Weight capacity:
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
- Materials: Marine-grade aluminum
- Packaging type: Poly Bag
- Weight: 1.08 lb
