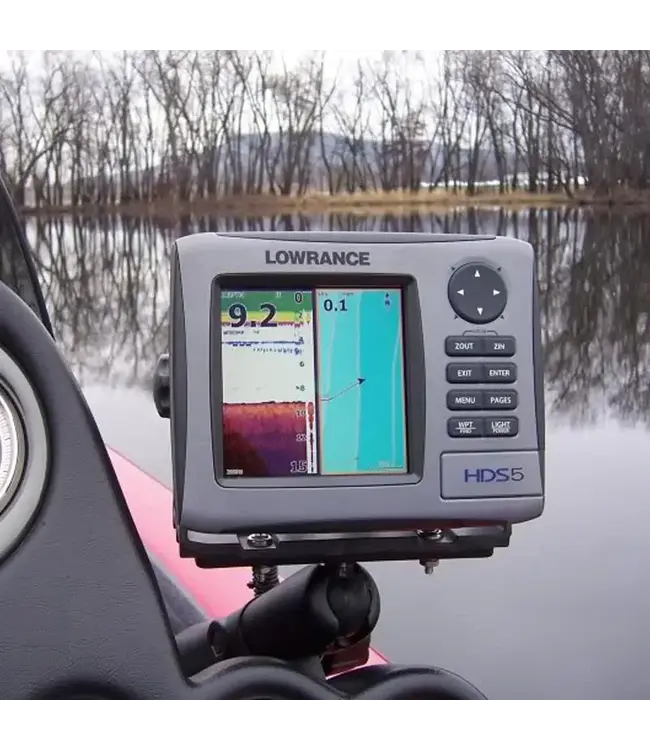

The RAM Universal Marine Electronic Mount (RAM-111U-D) is a rugged, fully adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this system includes a 9" long C size double socket arm, a 2.5" diameter round base, and a 6.25" x 2" rectangular adapter plate for secure device mounting. The rectangular adapter features multiple pre-drilled hole patterns, making it compatible with a wide range of marine electronics and mounting configurations, including fish finders, marine GPS units, CB and ham radios, gimbal brackets, and more.

Features:

• Complete flat surface, drill-down mounting solution with an overall height of 10.68"
• Includes C size long socket arm, 2.5" diameter flat surface drill-down base, and a 6.25" x 2" marine electronic adapter for fish finders depthfinders and more; RAM Mounts ball and socket technology allows for near-infinite adjustability
• Compatible with select Garmin, Lowrance, Raymarine and Humminbird Fish finders and GPS chartplotters
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

Specifications:

• Overall Height: 10.85"
• Socket to socket length: 8"
• Hole Pattern:
  • 4-Hole AMPS: 1.181" x 1.496"
  • 3-Hole 120-Degree: 1.812" Diameter
• Plate Size:
  • Rectangular Plate: 6.25" x 2"
  • Round Plate: 2.5" Diameter
• Ball Size: C Size (1.5")
• Weight Capacity:
  • Standard Use: 4 lbs
  • Heavy-Duty Use: 3 lbs
• Materials: Marine-grade aluminum
• Packaging Type: Poly Bag
• Weight: 2.3 lb

Additional Information:
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
