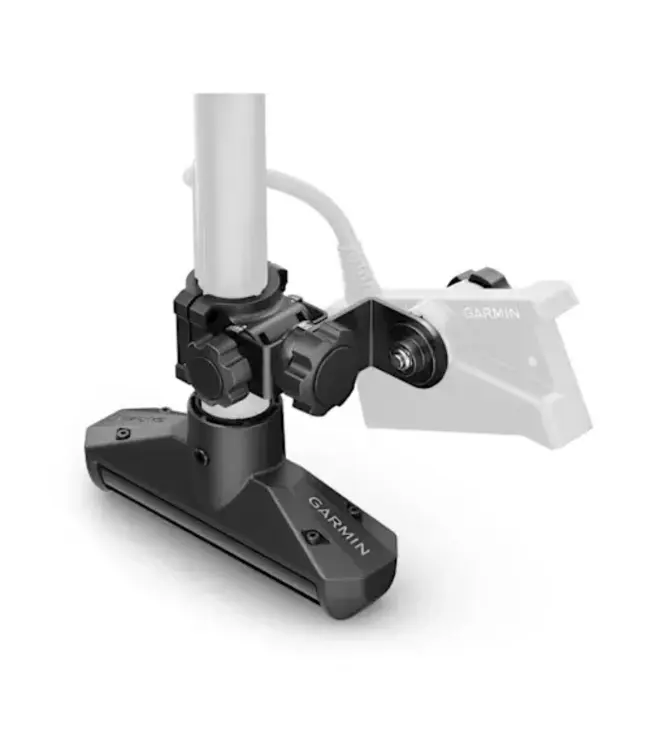

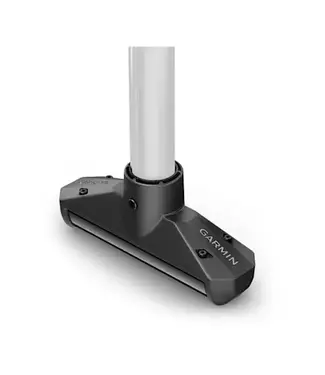

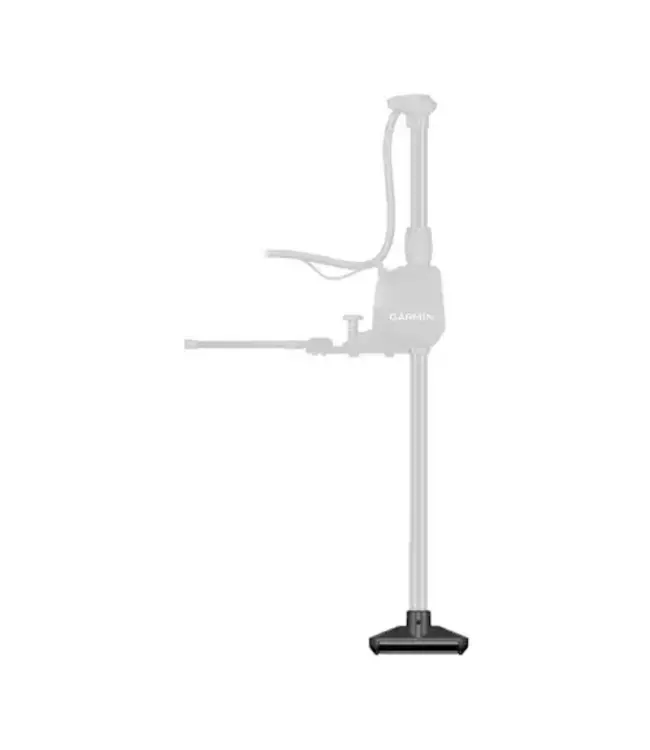

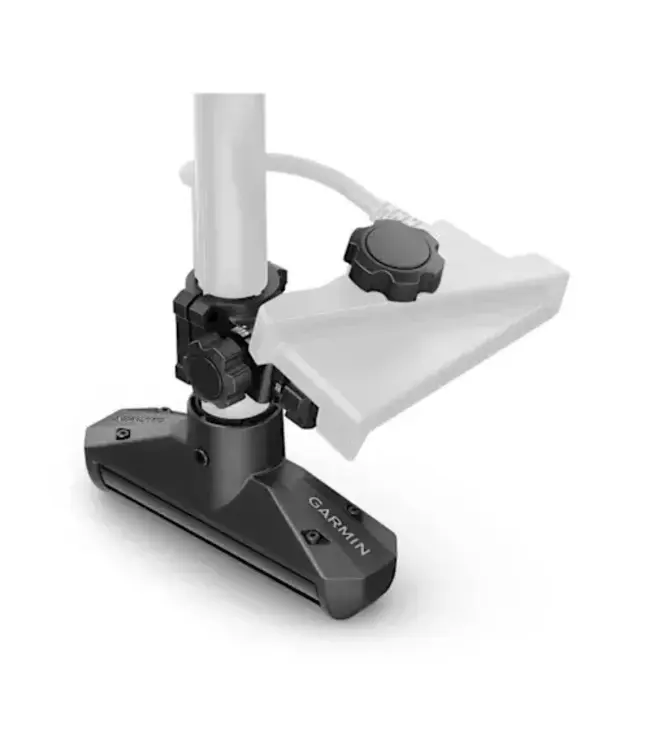

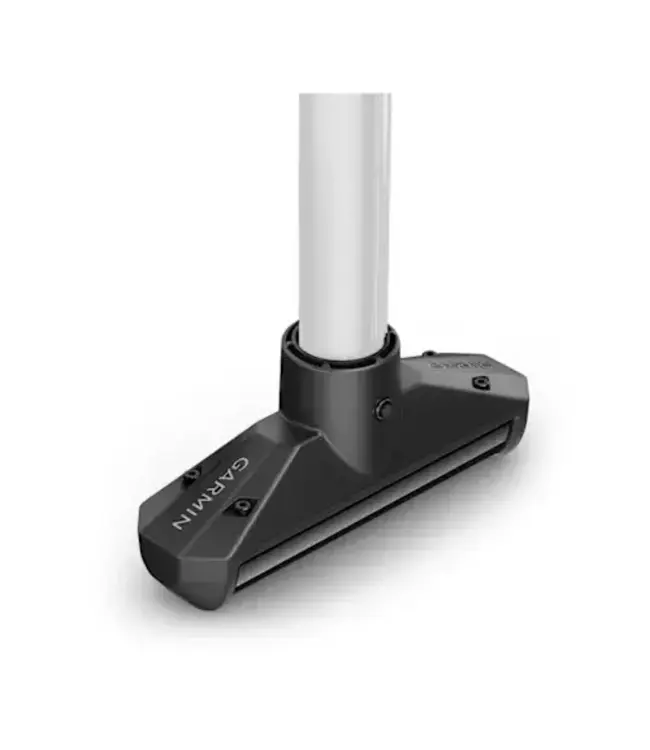

Capture 360-degree imagery of the area around your boat with the GT360UHD transducer when mounted to your Spy Pole.

• Capture crisp, clear 360-degree imagery
• See a bird's-eye view of what’s beneath the surface
• Pair with your compatible Garmin chartplotter
• Get a live window into 3d imagery with livescope sonar
• True motion technology integrates with GPS to keep scans true to location
• Select auto, manual or constant scanning modes

Specifications:

• Transducer frequency: OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz
• Transducer power: 500 W
• Transducer beamwidth: OneVü/SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
• Transducer maximum depth: OneVü/SideVü: 500 ft range
• Transducer cable length: 20.3 ft (6.2 m)
• Transducer depth/speed/temperature: Depth and Temperature
• Transducer number of pins: 12
• OneVü Source: Yes
• Dimensions (with mount; LxWxH): 216 mm (8.5") x 58 mm (2.3") x 97 mm (3.8")

In the box:

• GT360UHD 12-pin transducer
• GT360UHD transducer mount for Spy Pole

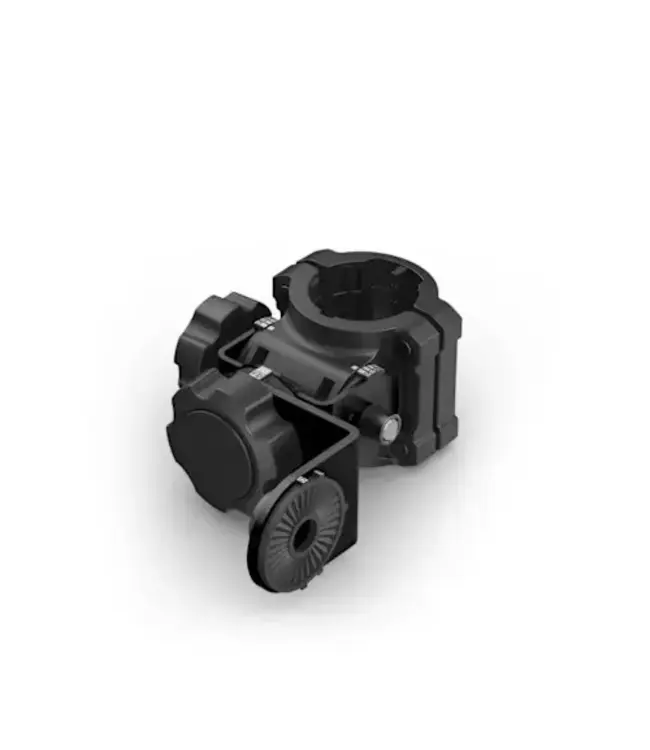

• LiveScope adjustable perspective shaft mount
• Dogbone stabilizer
• Mounting hardware
• Documentation
