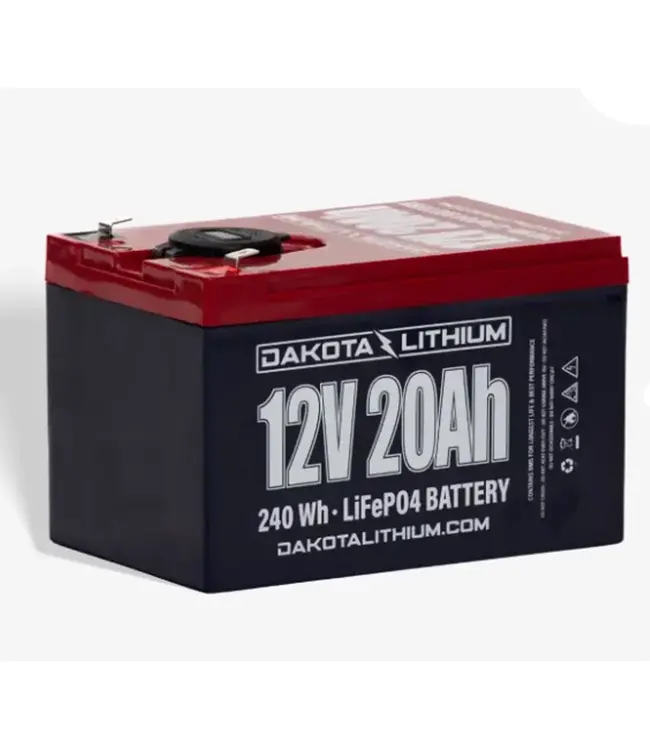

Engineered in a 12Ah SLA plastic case, but with with 20Ah of Lithium Iron Phosphate (LiFePo4) technology, this battery has three times the power, half the weight, and 5x the lifespan of a 12Ah sealed lead acid battery.
Technical Specifications:
- 11 Year Warranty: World beating, best in class, eleven year manufacturer defect warranty.
- Capacity: 20 Ampere hours. Dakota Lithium batteries provide consistent power for all 20 Amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries, especially in cold temperatures. You get all the juice down to the last drop.
- Voltage: 12.8V
- Energy: 256 Watt-hours (Wh)
- Terminals: F2 Terminals (spade socket). When used in salt water, or corrosive, environments we recommend applying a small amount of dielectric grease on the blades of each terminal. It helps extend the lifespan.
- USB / Voltmeter: USB A & C ports provide easy charging for personal electronics. Voltmeter included for monitoring battery power levels.
- Size: 5.9" x 3.94" x 3.86" (151mm x 100mm x 99mm)
- Weight: 4.25 lbs (1.93Kg) That's 65% lighter then a SLA battery.
- Lifecycles (battery lifespan): Up to 80% capacity for 5,000 cycles in recommended conditions. The typical SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.
- Operating temperature: Ideal for rugged & harsh environments. Much better than SLA or other lithium’s. -20°F min, +120°F max optimal operating temps (battery performs well down to -20°F). Avoid charging below 32°F.
- Discharge: 10A continuous, 20A max. Note: For small trolling motors, we recommend using our 12v 54Ah battery to maximize your time on the water
- Charge: 10A max, 14.4V recommended, 15V max. Please note: this battery should be charged using a LiFePO4 compatible charger. A SLA charger may work, but will reduce performance and lifespan of the battery.
- Includes active BMS protection: Contains a circuit that handles cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life.
- Series or Parallel: BMS can support wiring these batteries in series or parallel for up to 4 units (up to 48V series or to 12V 80Ah parallel)
- Certifications: All batteries are UN38 certified. Dakota Lithium's cells are UL1642 certified and have been tested per IEC62133 standards. Meets all US & International regulations for air, ground, and train transport.
- ISO 9001:2015: Dakota Lithium is ISO Certified per 9001:2015 standards, and select models are produced in ISO 14001 certified facilities.
- Charger Sold Separately: This battery should be charged using a LiFePO4 compatible charger. Dakota Lithium 12V batteries should be charged at 14.4 volts. Lead acid chargers will work, but will only charge the battery to 80% of capacity.
