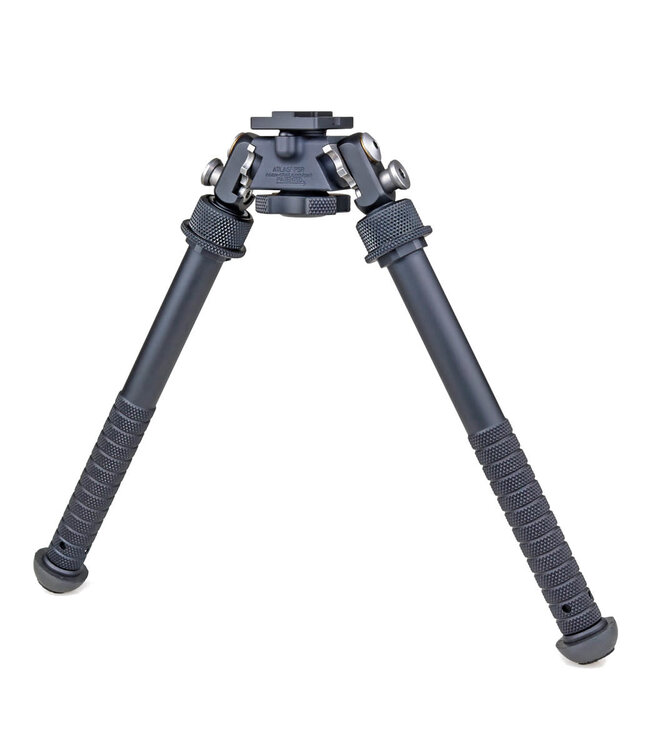

B&T PSR Atlas Bipod [No-Clamp]

B&T's PSR bipod with no clamp. With this particular model you can purchase a clamp separately to fit most popular attachment points on rifles.

Standard Height:

The BT46-NC PSR (Precision Sniper Rifle) Atlas Bipod “No Clamp” model has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires any 17S size lever style mount to include the ADM-170-S, ARMS 17S, TRAMP from Badger Ordnance, LT271 or any ARCA dovetail mount with the same hole pattern. The BT46-NC will also mount directly to our BT19 AI Spigot or BT70 M-LOK Adapter.

It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.

The PSR series of Atlas Bipods were developed for the SOCOM PSR (Precision Sniper Rifle) Weapons System (BT46-LW17 was selected for SOCOM PSR).

Features and Benefits:

• Height Range: 5 – 9.4″ (6.5” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.5″ diameter
• Fore and Aft pivot limiting Bosses
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 11.42 ounces approx.
• Footprint: 8–11″

SKU: BT46-NC

Tall Height:

The BT47-NC PSR (Precision Sniper Rifle) Atlas Bipod “No Clamp” model has a two hole pattern of 1.100” with the holes being 10/32 threads. It requires any 17S size lever style mount to include the ADM-170-S, ARMS 17S, TRAMP from Badger Ordnance, LT271 or any ARCA dovetail mount with the same hole pattern. The BT47-NC will also mount directly to our BT19 AI Spigot or BT70 M-LOK Adapter.

It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Includes two 10-32 x 3/8″ flathead socket screws. Available in black only.

The PSR series of Atlas Bipods were developed for the SOCOM PSR (Precision Sniper Rifle) Weapons System (BT46-LW17 was selected for SOCOM PSR).

Features and Benefits:

• Height Range: 6.2 – 12.5″ (8.3” at 90°)
• Preloaded Pan: 30 degrees
• Preloaded Cant: 30 degrees
• Position Button 0.5″ diameter
• Fore and Aft pivot limiting Bosses
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 12.86 ounces approx.
• Footprint: 10-14.5″

SKU: BT47-NC
